Fastening & Clips

A wire-rope cable system is the most common method of attaching netting to hard surfaces such as cement, brickwork and colorbond fences. This is also the method employed for the majority of professionally installed enclosures. It is cost effective, gives a neat and professional finish and requires the least amount of drilling.

This method involves the installation of a STEEL WIRE ROPE which sits flush against your wall and then then acts as a support for net hanging. The netting is then attached to the rope using our C-CLIPS or cable ties.


How To Measure Up and Order

Step 1: Measure the length of wire required. This may be the length of a wall, the perimeter of a balcony or other. Try to keep the length of any one individual run of wire to a maximum of 20m.

Step 2: Determine which type of eyelet to use:

  • Dynabolt Eyelets - Brick, Concrete, Hard Surfaces
  • Screw Eyelets - Timber
  • Colorbond Eyelets - Colorbond Fences, Metal
  • Bolt Eyelets - Miscellaneous

Calculate the amount of eyelets you will require to guide the wire along its path. We generally recommend 2 per metre plus any additional guiding the wire around corners etc.

Step 3: For each run of wire you should order 1 turnbuckle and two wire rope grips. The turnbuckle will tension the wire and the wire grips will hold the wire in position at each end.

Step 4: Weave black rope through the edge of the netting to create a strong seam. Then use 10 C-Clips per metre to attach the netting to the stainless wire cable.

Sort by:
Catnets Wire Rope Fastening & Clips Wire Rope (by-the-metre)

Wire Rope (by-the-metre)

$2.20
Catnets Wire Rope Fastening & Clips Wire Rope Bulk 10m Roll

Wire Rope Bulk 10m Roll

$19.00
Catnets Wire Rope Fastening & Clips Wire Rope Bulk 25m Roll

Wire Rope Bulk 25m Roll

$44.00
Catnets Wire Rope Fastening & Clips Wire Rope Bulk 50m Roll

Wire Rope Bulk 50m Roll

$62.00
Catnets Wire Rope Fastening & Clips Wire Rope Bulk 100m Roll

Wire Rope Bulk 100m Roll

$115.00
Catnets Wire Rope Fastening & Clips Wire Rope Bulk 300m Roll

Wire Rope Bulk 300m Roll

$220.00
Quatra Accessories Turnbuckle Options

Turnbuckle

$10.00
Catnets Wire Rope Fastening & Clips Wire Rope Grip

Wire Rope Grip

$3.50
Catnets Wire Rope Fastening & Clips Netbolt Eyelet

Netbolt Eyelet

$2.00
Catnets Wire Rope Fastening & Clips Screw Eyelet

Screw Eyelet

$1.00
Catnets Wire Rope Fastening & Clips Multi-Surface Eyelet

Multi-Surface Eyelet

$3.00
Catnets Wire Rope Fastening & Clips Bolt Eyelet

Bolt Eyelet

$4.40

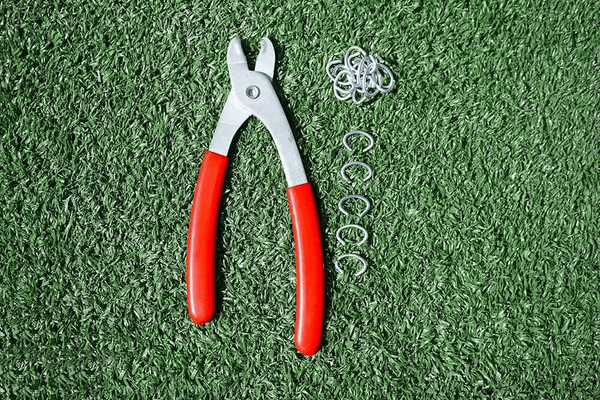

Catnets Wire Rope Fastening & Clips C-Clips Package (includes 530 clips)

C-Clips Bag/500

$17.95
Catnets U-Shape Nails U-Nails 40pk

U-Nails 40pk

$5.00
Catnets U-Shape Nails U-Nails 40pk

U-Nails Bulk 670pk

$21.95
Catnets WIRE ROPE FASTENING & CLIPS Aluminium Crimps

Aluminium Crimps

$0.50
Catnets WIRE ROPE FASTENING & CLIPS Aluminium Crimps 100pk

Aluminium Crimps 100pk

$10.50
